Client: Independent Power Producer (IPP), Chile
Project Type: Power Generation — Grid Step-Up
Voltage Class: 220kV (Extra High Voltage)
Capacity: 425 MVA
Application: Power plant output step-up to national transmission grid
Status: Operational
The Challenge:
A major independent power producer in Chile required a large-capacity step-up
transformer to connect a new generation facility to Chile's national 220kV
high-voltage transmission backbone. The unit had to meet the stringent
requirements of Chile's grid operator while integrating with the plant's
smart monitoring and control systems.
Our Solution:
This project represents one of Milestone's highest-capacity deliveries and
demonstrates our capability in extra-high-voltage (EHV) applications:

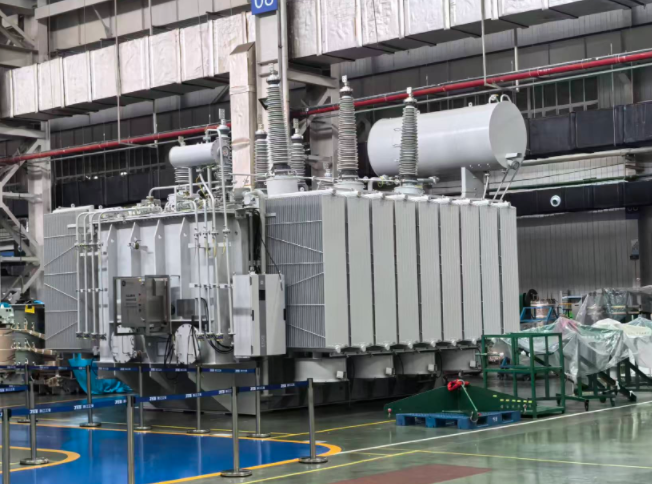

• 220kV / 425MVA three-phase, two-winding step-up transformer
• Low-loss amorphous or high-grade silicon steel core design
• Integrated smart monitoring: fiber optic temperature sensors,
online dissolved gas analysis (DGA), load tap changer monitoring
• Real-time data export compatible with client's SCADA system
• Factory Acceptance Test (FAT) witnessed by client's engineers
• Coordinated logistics: heavy-lift transport from factory to port,
then sea freight to Chile, inland transport to site
The Outcome:
• 425 MVA successfully stepped up to 220kV national grid
• Smart monitoring system enabled predictive maintenance
• Full SCADA integration completed within project schedule
• Plant reached commercial operation date (COD) on target
"Milestone's team demonstrated exceptional technical competence.
The transformer met all specifications, and their smart monitoring
integration was ahead of what we expected from a Chinese supplier."
— Senior Engineer, Chile Power Project Team
